What is PET (PolyEthylene Terephthalate)
        PET (also named PETE) is a kind of polyester material for fiber, injection molded parts, as well as blow-molded bottles and jars. Special grades are offered with the required properties for the different applications.

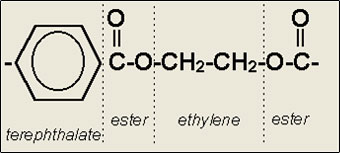

    PET is linear thermoplastic (long-chain molecule consists of repeating units shown as figure right), white but bluish resin made from terephthalic acid and ethylene glycol through poly-condensation. PET is supplied by the resin
  manufacturers in the form of small pellets, each about 0.05 gram.
    PET came into prominence in the 1950s as a textile material. Its strength, temperature tolerance and wear-resistance made it an ideal replacement for, or addition to natural fibers such as silk, cotton and wool.
    It has good antiosmosis, low water absorbability and good toughness. PET film's tensile strength is similar with aluminum film's, and is three times that of PC and PA film. PET film is transparent. It's tensile strength can reach 1/3~1/2 of steel's if dealed by oriented draw. It's the toughest thermoplastic film. It will be burnt with yellow flame and will burst when burning. And it will continue burning when away from fire.
Bottle Grade PET
    Nowadays PET is still widely used for these purposes, but when, in the 1970s a marketing need was identified for larger light-weight, unbreakable bottles to contain carbonated drinks, PET fit the bill perfectly. Unlike simple polymers such as polyethylene, PET is not made by a single stage process, but by the reaction between two chemicals, purified terephthalic acid (PTA) and ethylene glycol (EG). The availability of the first of these has dictated the supply of PET resin in the past, but new capacity coming on stream this year will ensure more than adequate supplies to meet the growing uses of PET over the coming years. Related polyesters are polybutylene terephthalate (PBT) used mainly for engineering applications, and polye-thylene naphthalate (PEN).The latter offers significant performance improvements over PET,particularly in terms of barrier properties
  and heat tolerance.Since PEN canbe blended with PET a range of new 'alloys' is becoming available for special packaging applications.
    As PET (bottle grade) is a kind of transparent, wear-resisting and corrosion-resisting plastics with high strength and smooth finish, it is widely used for PET bottles of mineral water, juice, edible oil, pharmaceuticals, cosmetics, etc.
  Melting Temperature: 254-2560C
  Crystallinity: >=45%
   PET products can be made crystallizable or non-crystallizable through controlling crystallization temperature and cooling speed.
   Usually it's crystallinity is 0~50%. The higher IV value, the slower crystallization speed.
   The key factors that effect PET bottles' molding process and performance are crystallization and orientation. If PETa€?s moisture
   evel is high, hydrolysis will happen while molding and it's IV value will drop which means products' quality be affected.
  Carboxyl End Group: <=20mol/t
  Acetaldehyde: <=3ppm (Ex-Work, related to drying & molding temperature)
   For CSD bottle, <=9ppm required; for mineral water, <=4ppm required.
  Density: 1.38~1.40g/mm3
  Glass Temperature: 820C
    In the bottle industry, the length of the PET chains is usually described by the resin IV (Intrinsic Viscosity). Bottle grades have IV values of about 0.65 to 0.85 dL/g, or about 100-155 repeating units per chain.
    Most bottle grades of PET are copolymers, which means that a few percent of a modifier has been incorporated into the polymer chain. Copolymers are easier to injection mold because the crystallinity behavior is improved.
    Aremarkable transformation takes place when injection molded PET is stretched at the right temperatures and to the right extent. The long chains undergo strain-hardening and strain-induced crystallization, which gives the properly-made PET bottle exceptional clarity, resistance to internal pressure, uniform wall thickness, toughness, and a host of other features. To achieve these useful properties, however, care must be taken in choosing the right grade of resin, as well as the right preform and bottle designs, and good molding practices.
    Some grades of PET have other modifications to improve the bottle barrier properties, the reheat characteristics (for two-stage systems), or the generation of AA (acetaldehyde).
Main Advantage of PET
    Crystal Clear
    Products look good, pure and healthy. Sparkling PET bottles attract attention. Brilliant glass-clear presentation of your products.
    Products taste good. PET complies with international food contact regulations.
    PET bottles are tough and virtually unbreakable during production, storage and transportation. If they do fail, they split, not shatter. Their high impact and tensile strength makes them ideal for carbonated products.
  Good Barrier
    The low permeability of PET to oxygen, carbon dioxide and water means that it protects and maintains the integrity of products giving a good shelf life. PET also has good chemical resistance.
    10% weight of an equivalent glass pack, PET bottles reduce shipping costs by about 30%, and because the material in the wall is thinner, shelf utilization is improved by 25% on volume compared to glass. High strength, low weight PET bottles can be stacked as high as glass.
  No Leakage
    Absolute closure integrity is possible because of the injection molded neck finish. The absence of a weld line in the base means that PET bottles don't leak.
  Design Flexibility
    Suitable for containers of all shapes, sizes, neck finishes, designs and colors.
    Excellent environmental profile due to single material. Used PET bottles can be washed, granulated into flakes and reshaped as PET bottles or employed as material for strapping, carpeting, fiber filling, etc. Specially designed thick-wall bottles can be washed, refilled and reused. PET is made from the same three elements (carbon, oxygen, and hydrogen) as paper, and contains no toxic substances. When burned, it produces carbon dioxide gas and water, leaving no toxic residues.
  Good Resistance
    PET offers the best chemical resistance performance of any mainstream polymer used in packaging today.
  Long Shelf-life
    Very good shelf-life performance, especially with the new higher barrier formulations.
